APPLICATION

General Water Pump for Industrial Application.

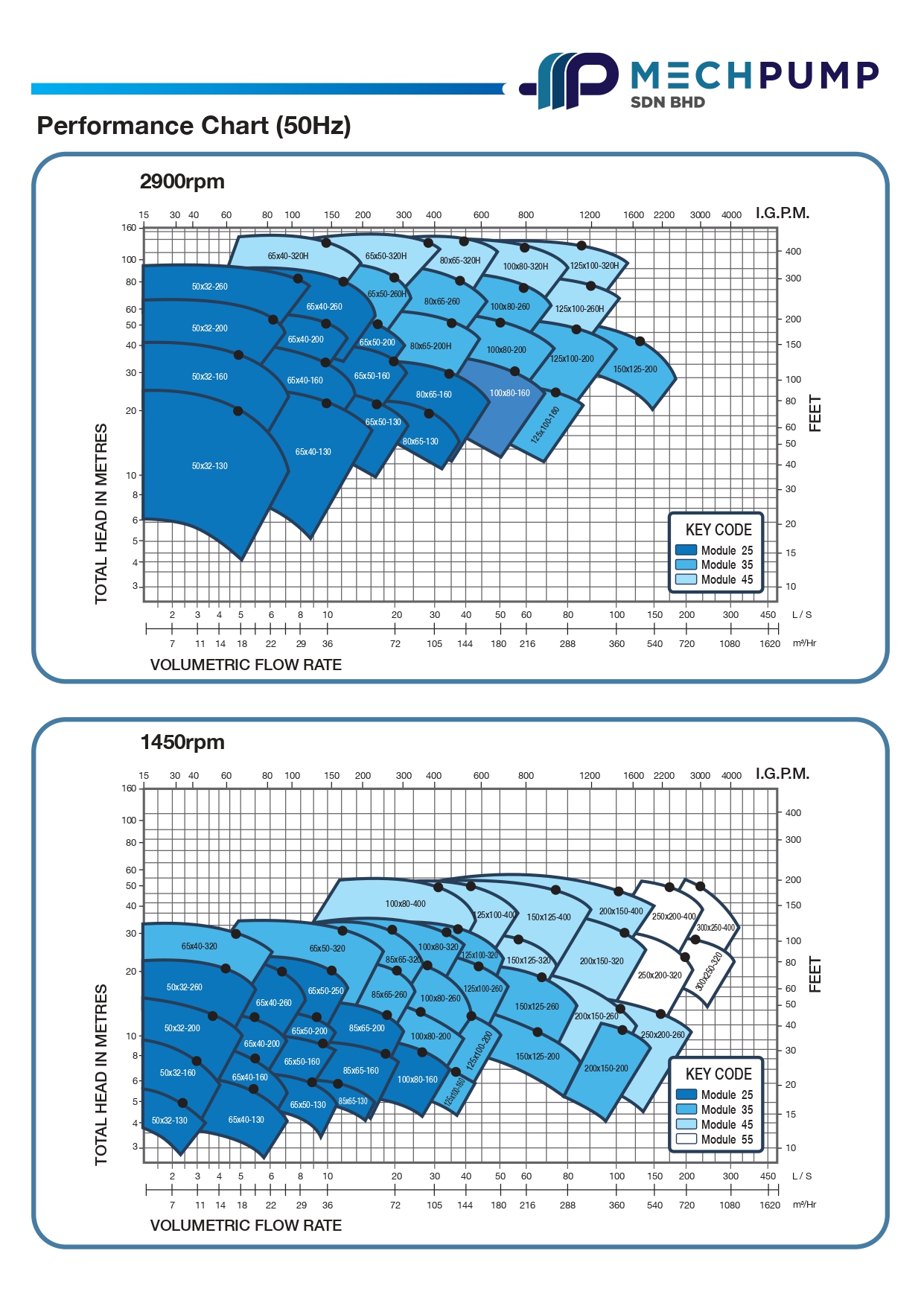

CAPAICITY

1 450 rpm

Upto 1,020 M3/hr

Upto 80 M Head

2900 rpm

Upto 330 M3/hr

Upto 130 M Head

DESIGN
Single Stage end suction back pull out centrifugal pump
5 Pedestal
SPECIFICATION

ISO 2858 16 Bar Rating.

Flanges
  • ISO 7005 (2084) NP 16/BS 4505 class 16
Stuffing Box
  • ISO 3069

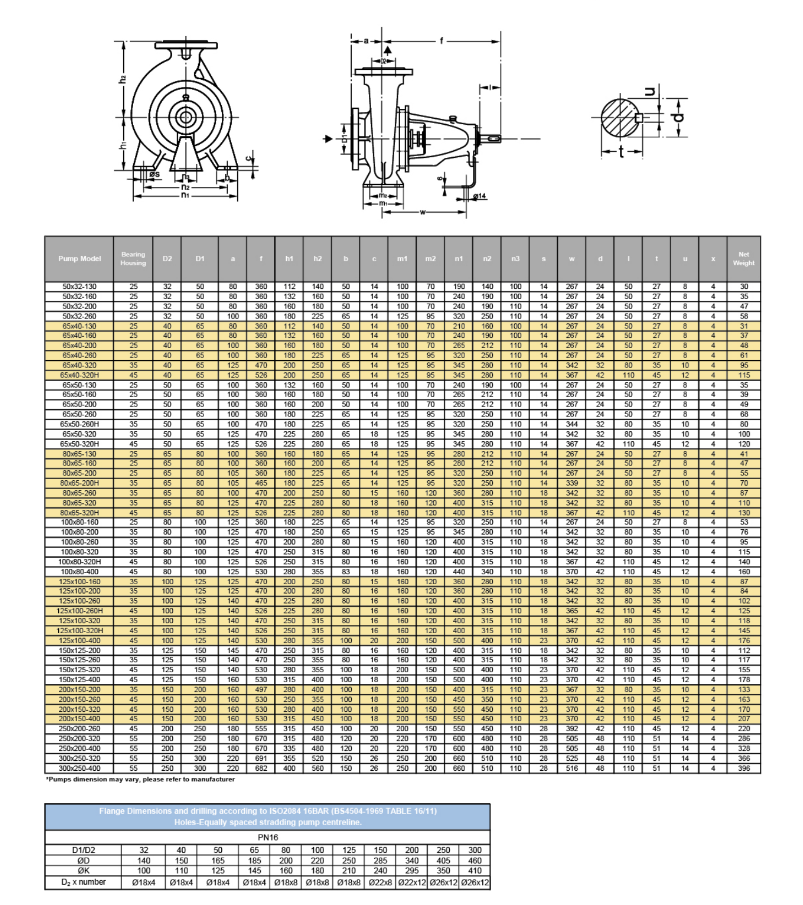

Centre line height and shaft size
  • In accordance to the dimension of metric motos to BS3979
STANDARD FEATURES
Water Box
DUAL CAVITY SEAL ON REQUEST
  • MECHANICAL Seal
    • Carbon Vs. ceramic faces, Buna Elastomer
  • Gland Pack
    • Burgmann or equivalent
Bearing
  • Sealed deep groove ball bearing life-lubricated
Working Temperature
  • 70o C Max 100o C
Pump End Sealing
  • NBR
PUMP END MATERIAL CONFIGURATION
SPARE PART

Casing

Impeller

Shaft

STANDARD

CAST Iron

CAST Iron

Stainless steel 304

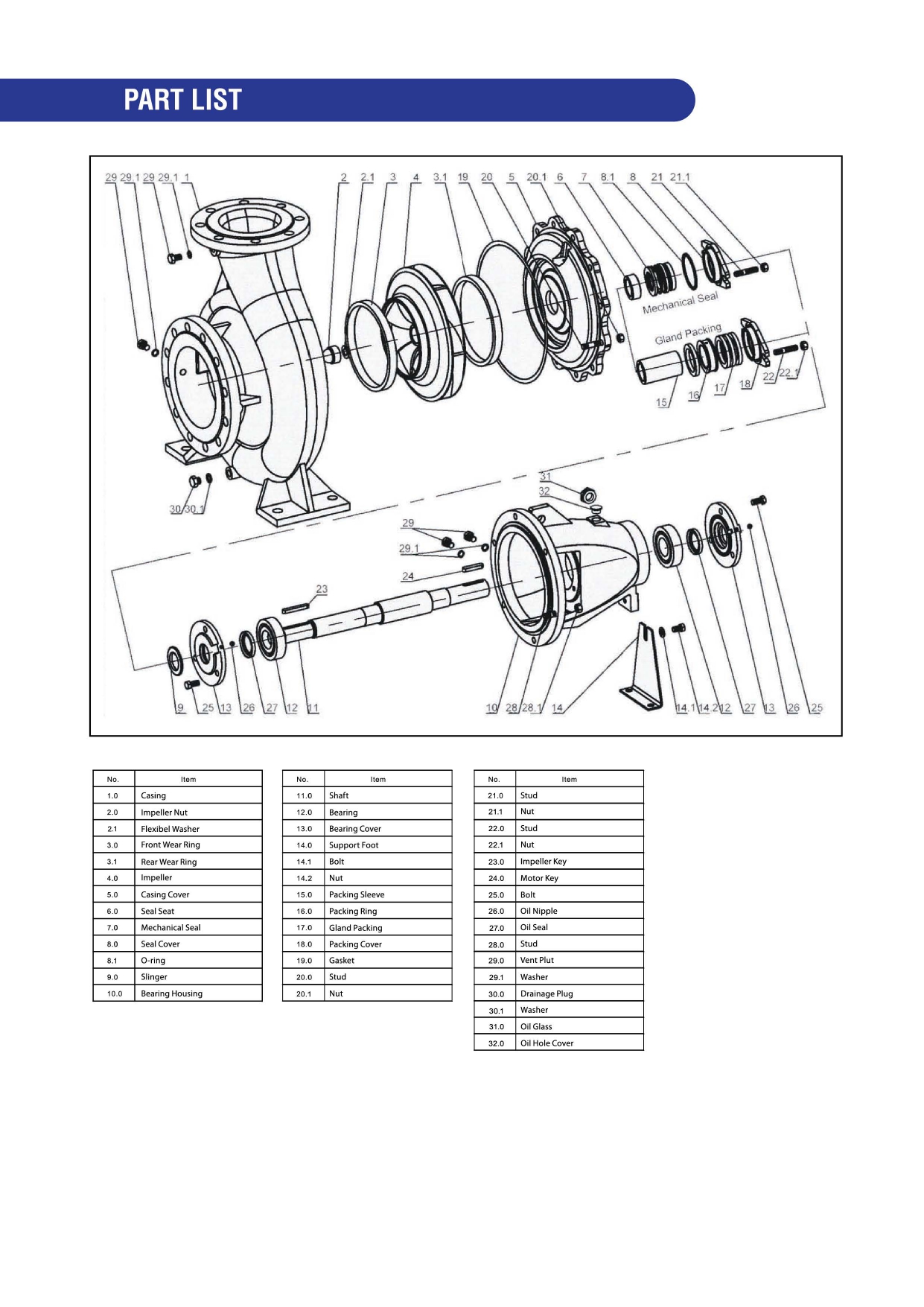

Part Details

1

CASING

15

IMPELLER NUT

2

IMPELLER

16

IMPELLER KEY

3

BACK COVER

 17 *

CASING RING

4

BEARING HOUSING

18

DRAIN PLUG

5

STUFFING BOX BUSH

 19 *

BACK COVER RING

6

LANTERN RING

20

GASKET

7

PACKING

21

STUD AND NUT, CASING

8

SHAFT SLEEVE

22

BOLT, BACK COVER

9

GLAND

23

STUD AND NUT, GLAND

10

SLINGER

24

CAPSCREW

11

SHAFT

25

COUPLING KEY

12

BEARING

14

BEARING COVER

*for 200x200 and larger pumps only.
